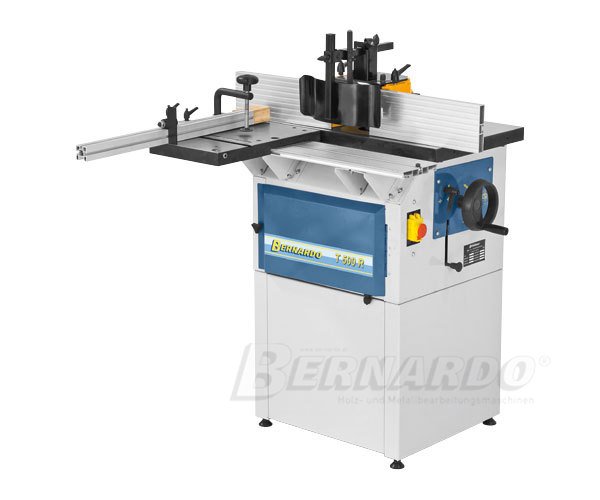

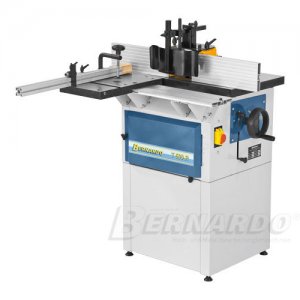

Asztali marógép
Termékismertető:
Add to Compare
Add to Wishlist
Sie haben Fragen zu diesem Produkt?
Kontaktieren sie uns
Bestellungen im Onlineshop nur für Kunden aus Österreich möglich!
Download
The interchangeable spindle shortens processing times when working on series.
Complete with mitre fence which can be tilted from -60º to +60º.
The stop bars of the moulding fence can easily and quickly be adjusted to each cutting tool. The standard protective device eliminates the risk of workpiece kickback.
Practically positioned handwheel guarantees quick and easy spindle height adjustment.
The grey cast-iron moulder unit is easily accessible, which allows hassle-free change of speed.
Previous
Next
Technische Spezifikationen
Table size
600 x 400 mm
Table size sliding table
1000 x 215 mm
Working height
860 mm
Spindle diameter
30 mm
Height adjustment of spindle
110 mm
Working length of spindle
95 mm
Max. tool diameter
150 mm
Max. tool diameter concealed
150 mm
Table opening
170 mm
Spindle speed
1400 / 4000 / 6000 / 9000 rpm
Motor power output S1 100%
1,5 kW (2,0 HP)
Motor power input S6 40%
2,1 kW (2,8 HP)
Voltage
230 V
Machine dimension (W x D x H)
1000 x 800 x 1200 mm
Weight approx.
100 kg
Features
Solid, oversize grey cast-iron table ensures vibration-free run
Smooth sliding table for easier procesing of oversize workpieces
4 speed settings come standard to allow for optimal adjustment to each workpiece
Solid moulder unit with powerful motor
Robust moulding fence with fi nely adjustable aluminium stop bars
Dynamically balanced moulder spindle ensures precise running
Complete with mitre fence and downholder
Standard accessories:
Interchangeable spindle 30 mm
Interchangeable spindle for end mills 6, 8, 12 mm
Sliding table
Mitre fence
Downholder
Stop bar
Protective and pressing device
Optional accessories:
Spindel 30 mm (Art.Nr.:09-1253)
Interchangeable spindle for end mill 6, 8, 12 mm (Art.Nr.:09-1253A)
Collets 6, 8 mm (Art.Nr.:09-1253B)
Feeder AF 32 / 400 V (Art.Nr.:13-1015)
Dust collector DC 230 E / 230 V with tube 2,5 m (Art.Nr.:12-2043)
Dust collector DC 230 E / 400 V with tube 2,5 m (Art.Nr.:12-2044)
Dust collector with cartridge filter DC 250 CF / 230 V (Art.Nr.:12-2085)
PU-tube diam. 100 mm (6 m) (Art.Nr.:12-1077)
Universal cutter head set 100 x 40 x 30 mm (Art.Nr.:16-2349)
A teljes Bernardo gépkínálat a www.bernardo.at honlapon tekinthető meg.
