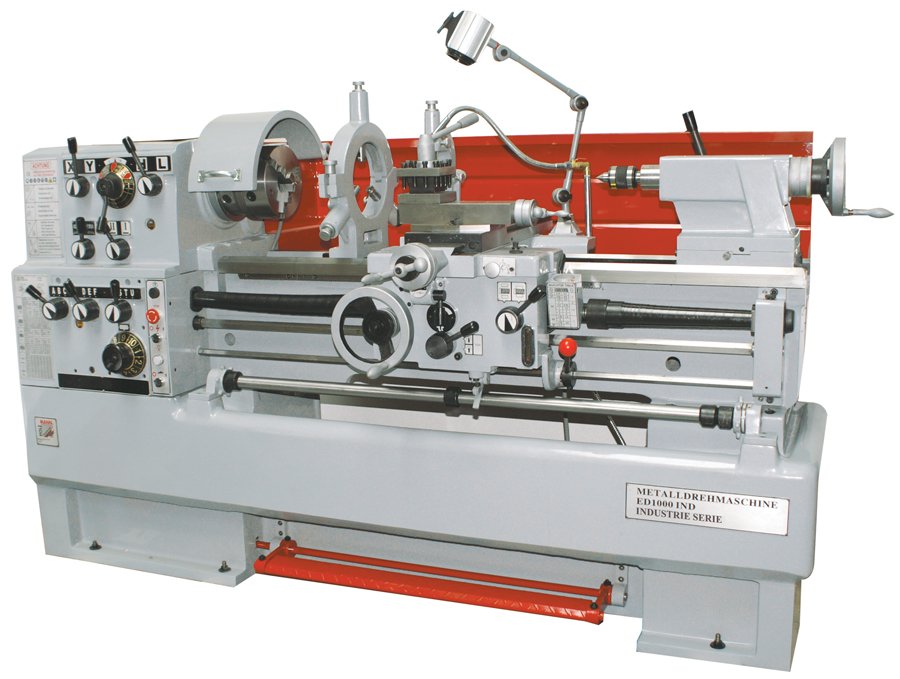

with 3-axis DRO
heavy and vibration absorbing one-piece cast iron
machine bed assuring superior accuracy
very wide bedways with induction-hardened and precision ground prismatic guideways
handy and easy operation via clearly designed control panel
removable bridge enables the machining of large
diameters in the gap bed section
4-position automatic kick-out longitudinal carriage stop
all guides conveniently adjustable via V-ledges
CAMLOCK D1-6, DIN 55029
tailstock can be offset for turning tapers
hardened and ground gears and spindles running in permanent oil bath lubrication
huge spindle bore (Ř =58mm)
electromagnetic foot brake ensures maximal working safety and cuts down nonproductive time dramatically
broad range of metric and imperial thread pitches selectable
includes as standard halogen lamp and coolant device
DRO optionally available
included in delivery: 3-axis DRO, cooling system, halogen lamp, 3-jaw chuck Ř250mm, 4-jaw chuck 250mm, face plate 350mm, reducing sleeve, thread dial, change gears, follow rest, steady rest, 4 way tool post, 2x dead centers, splash guard
distance between centers
1500mm
center height
230mm
spindle speeds
(12) 25-2000 rpm
sizes
2720x1040x1370mm
motor power S1 (100%) / S6
5,5kW/7,7kW
voltage
400V
net weight
2020kg
gross weight ca.
2330kg
packaging dimensions
1730x2800x1120mm
max. swing (Ř) over bed
460mm
max. swing (Ř) over cross slide
274mm
max. swing in gap
690mm
spindle bore
80mm
spindle taper
MT6
tailstock taper
MK4/MT4
spindle nose mount
D16, DIN 55029
range of longitudinal feeds (42 steps)
0,031 1,7 mm/r
range of cross feeds (42 steps)
0,014 0,784 mm/r
Gewinde Metrisch (41 Stufen)
0,1 14 mm/r
Gewinde Zoll (60 Stufen)
2 112 Gg/1
cross slide travel
290mm
compound slide travel
120mm
stroke of tailstocks
120mm
sizes
2170x1040x1370mm/
2720x1040x1370mm
center height (2. Position)
230mm
optional accessories:
turning tool 7pcs/16mm
7TLG16HQ
keyless chuck 1-16mm
SSBF16
Cooling and lubrication liquide 5L
KSM5L
ball bearing live center
KGRMK4HQ
Arbor MT4/B16
DMK416
gauges see page 57
