Termékismertető:

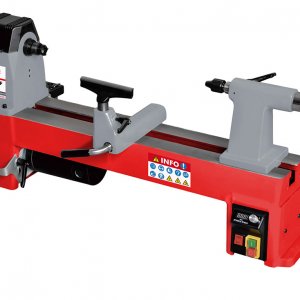

precision tool for professionals, gray cast iron version
variable speed control with mini frequency converter, therefore high torque at low speeds
high standard of spindle concentricity
single hand operation of the tailstock and tool rest with cam lock mechanism
metal handles are treated with chrome polish
spindle fixable all 15 degrees
optional: bed extensions (644 mm) D 510FBVL
LCD-speedometer

Spannung / voltage 230V / 50Hz
Motorleistung / engine power 735W (S1 100%)
Spitzenhöhe / center height 160 mm
Spitzenweite / distance between centers 510 mm

Drehzahlbereiche / speed ranges
(1) 250-750 min-1
(2) 550-1650 min-1
(3) 1300-3850 min-1

Spindelstock Gewindeaufnahme / head stock norm spindle M33 DIN800
Morsekonusaufnahme / morse taper MK2 / MT2
Pinolenweg / tailstock ram travel 63 mm
Gewicht / weight 52 kg
Abmessungen / dimensions 1035 x 305 x 449 mm
