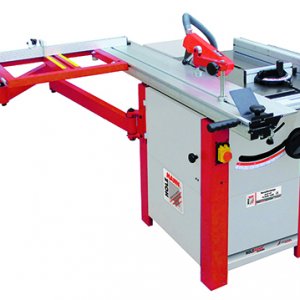

Lapszabász körfűrész

height- and angle adjustable saw blade
grey cast iron table with extension on the right hand side and at the back of the table
smoothly running 1600 mm aluminium sliding table with rugged outrigger table incl. support roller
extractable mitre at rip fence with work piece end stop
cutting width at rip fence with max. 590mm

included in delivery: T.C.T. circular saw blade Ř250mm, extensions, table extensions, rip fence, mitre fence, telescopic fence

max. saw blade diameter
250mm

rotation speed of saw blade
3600 U/min

max. cutting height 90°/45°
80/60mm

saw blade tilt
0°-45°

max. cutting length
1400mm

max. cutting width at parallel fence
590mm

table height
865mm

working table
350x760

table extensions
300x760mm
280x400mm

sliding table
1600x238mm

length mitre fence
1200-2200mm

Ř dust collector inlet
100mm

engine power S1 (100%) / S6
2,2kW/3,1kW

voltage
230V or 400V

net weight
155kg

gross weight ca.
181kg

packaging dimensions
790x685x605mm
1700x275x230mm
